Assembly instructions for the triflex® R - TRLF energy chain

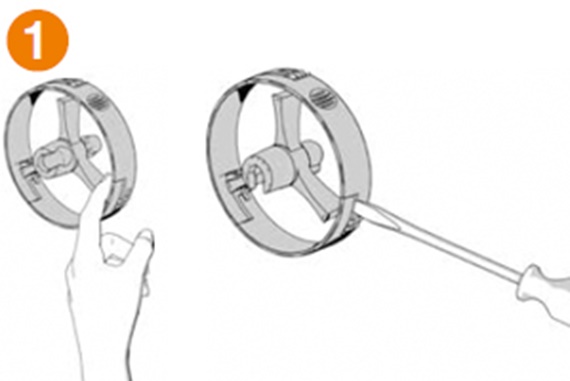

First lug - thread onto the notch by hand or using a screw driver

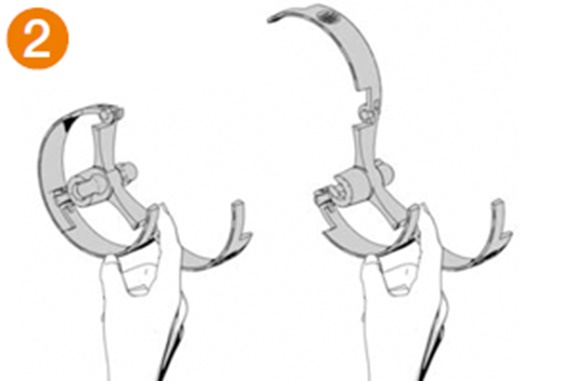

Second and third lug – tighten by hand

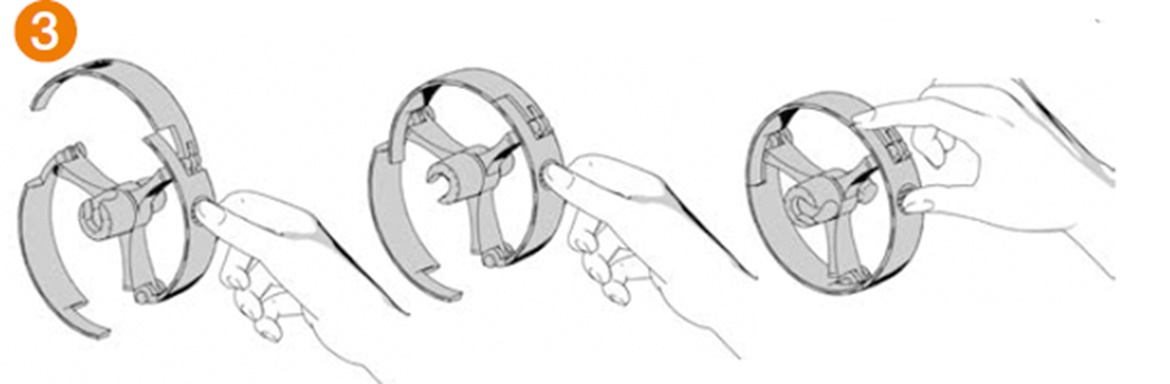

Closing the chain - press closed by hand

Push down until a "click" is heard

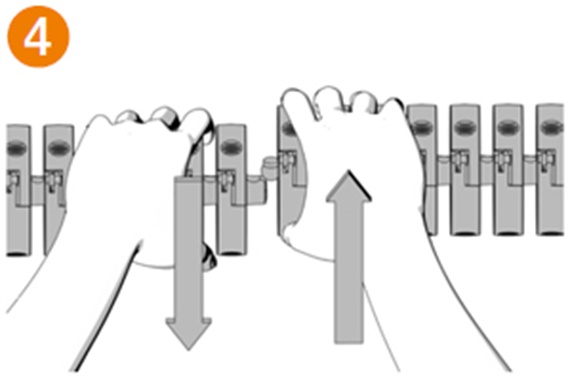

Removing the chain links – add

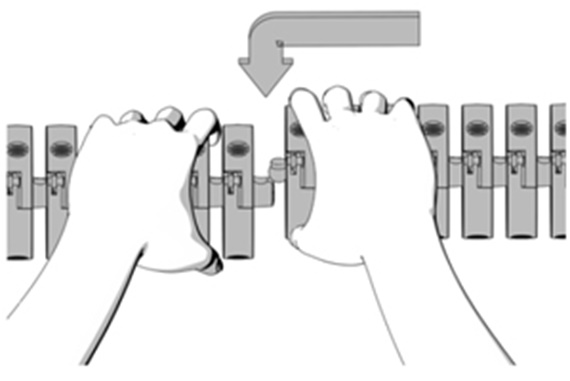

Push the chain links apart
Insert and push down
