Profile rails from the drylin® W product range

Profile rail products

Single rails

Linear system drylin® W single rail

Less installation work with floating bearing
High variability in the assembly
Compensation of misalignment errors with floating bearing

Buy single rail

Double rails

Linear system drylin® W double rail

Non-tilting
Quick assembly
Large number of installation sizes available

Buy double rail

High-profile rails

For extremely high loads
Variable mounting with slot nuts
Especially suitable for drive technology

Buy high-profile rail

Curved linear guide

Curved linear guide

Variable profile directions
Suitable linear carriages
More information

Buy a curved rail

Application examples

banner aigro

AIGRIO UP

The weed control robot from AIGRO UP with drylin® W profile rails and linear housing from igus®.

Velolift

MAX Velolift

The MAX Velolift from Rad9 for assembly of bicycles with the drylin® W double rail and linear housing from igus®.

Fiedler

Municipal vehicle

The municipal vehicle from Fiedler with the drylin® W double rail WS and drylin® W pillow block from igus®.

banner

SLIDE

The SLIDE from InGymNeering consists of the drylin® W profile guide and the drylin® W pillow block from igus®.

Profile rails for permanent use

drylin® W profile rails enable extremely high flexibility in design and a simple assembly by the application of individual or double rails. Hard-anodised aluminium is used as a rail material and provides the best coefficients of friction and low wear results for profile rails. The robust high-profile carbon fibre is especially light. The multiple options enable the use of drylin® W profile rails in many applications - even under extreme conditions.

Fast and easy installation
Maintenance-free
Dirt-resistant
Light and robust
Quiet operation

Configure drylin® W rail and carriage

More about drylin® W profile rails

Fast assembly of the drylin® W linear guide

Save assembly costs

Simple and fast assembly thanks to double rails instead of two single rails mounted in parallel

drylin® W - Installation instructions

High flexibility with single rails for linear technology

More flexibility

in design thanks to flexible distances with parallel single rails

Construction of single rails

Lightweight linear guide drylin® W

Weight-optimised profile rails

With extremely light and strong carbon rail material. Save up to 60% weight.

Light profile rails

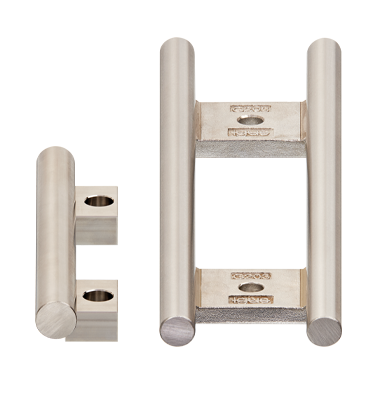

Corrosion-resistant linear profile rails

Profile rails made of stainless steel

Machine parts made of stainless steel are designed to survive in the worst environments. Heat, pressure, seawater, liquid and gaseous media like detergents and other chemicals. Linear systems made of stainless steel 1,4571 and 1,4301 are especially robust and are used in environments with particularly extreme conditions – for instance in the sectors:

Food and bottling industry
Meat processing
Harbour and crane facilities
Yacht building
Chemical industry
Electroplating industry
Medical and rehabilitation technologies
Packaging industry

Buy stainless-steel profile rail

The particularly light linear profile rail

The carbon profile rails is especially light and strong

The carbon profile rail WSPC is 70% lighter than liner rails made of aluminium or stainless steel. Especially in aircraft construction or the automotive industry the drylin® W carbon rail with square profile is used. The solid plastic carriage WWPL-06-30-06 made of an iglidur® material was developed specifically for the carbon rail and has best coefficient of friction and wear.
The X-ray transparency is another advantage of the carbon fibre. So the material is often used in medical or measurement technology.

Extremely lightweight
X-ray transparent
High strength and resistant
Non-metallic
Non-magnetic
Available with drive (lead screw/toothed belt)

Buy carbon profile rail

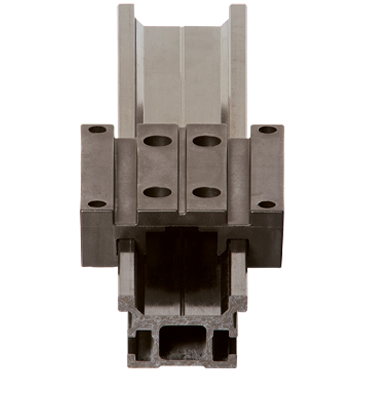

drylin® W carbon rail with plastic carriage

sustainability

Sustainability

drylin® linear technology does not use a single drop of lubricating oil. In addition, our tribologically optimised materials produce less micro-abrasion than commercially available plastics. Longer service life also has a positive net effect on the environment.

More information

General information about drylin®

Liners

Liners for a large number of applications

The plastic liners are cost-effective, maintenance and lubrication-free and can be deployed in a wide range of applications. The various materials offer versatile specifications to withstand various environmental conditions and influences.

More information

drylin-w-housing

Replace liners even more easily

With the innovative WJ200UMA-01-AL pillow block from the drylin® W product range, it is possible to replace liners without any disassembly work being required.The tool supplied makes it possible to exchange the liner within seconds. This saves valuable time and reduces costs!

Test bearings

Tested and proven.

Our drylin® products are tested in a test laboratory under a variety of conditions to ensure that they function reliably even in tough environments. Here we show you what is tested and how, and what happens to our test data. You can even have your application tested at igus®.

To the drylin® test laboratory

young engineers support

young engineers support

Are you a student or trainee who needs help? Free samples, expertise, catalogues and thesis publication – we will give you all the support you need.

Go back to drylin® W Overview
