Modular gearbox system

List
Tile

Number of products: 12

drygear® Apiro | Gearbox with hollow shaft
drygear® Apiro | Gearbox with hollow shaft
The standard version among Apiro gearboxes: the worm gear with hollow shaft enables flexible drive connections.

Product information
  • available transmissions 4:1, 32:1, 64:1
  • Output torque 2.5Nm
Optionally available
  • more transmissions
  • various fasteners
238.67 AUD/Pc.
2 in 24-48 hours from stock Germany
1 in 3-4 weeks from stock Germany
To the product page
New

Apiro® bevel gear
Apiro® bevel gear
Bevel gear units are used wherever motion and forces have to be transmitted at right angles. With a 1:1 transmission ratio, the transmitted torques can be transferred almost without loss.
  • 1:1 transmission ratio
  • Splash-proof
  • Ini-kit available for all variants
245.99 AUD/Pc.
1 in 1-2 weeks from stock Germany
To the product page

drygear® Apiro | Gearbox with multi-functional profile
drygear® Apiro | Gearbox with multi-functional profile
The gearbox and the direct multi-function profile can be used, among other things, to implement series connections of gearboxes.

Product information
  • available transmissions 4:1, 32:1, 64:1
  • Output torque 2.5Nm
Optionally available
  • more transmissions
  • various fasteners
243.96 AUD/Pc.
2 in 3-4 weeks from stock Germany
To the product page

drygear® Apiro | Gearbox with rotary disc
drygear® Apiro | Gearbox with rotary disc
This gearbox from the Apiro modular gearbox system is particularly suitable for slewing ring applications, as it can, among other things, be used as an external rotary axis.

Product information
  • available transmissions 4:1, 32:1, 64:1
  • Output torque 2.5Nm
Optionally available
  • more transmissions
  • various fasteners
289.62 AUD/Pc.
3 in 3-4 weeks from stock Germany
To the product page

drygear® Apiro | Gearbox with coupling
drygear® Apiro | Gearbox with coupling
The version with couplings on the output allows the attachment of various shafts with a maximum diameter of 12 millimetres.

Product information
  • available transmissions 4:1, 32:1, 64:1
  • Coupling diameter 8mm
Optionally available
  • more transmissions
  • various fasteners
276.88 AUD/Pc.
2 in 3-4 weeks from stock Germany
To the product page

drygear® Apiro | Gearbox with manual clamp and position indicator
drygear® Apiro | Gearbox with manual clamp and position indicator
The complete Apiro gear unit including manual clamp and position indicator is ideal for manual adjustments and fixings.

Product information
  • available transmissions 4:1, 32:1, 64:1
  • Accessories can be pivoted in four positions:0°, 90°, 180°, 270°
Optionally available
  • more transmissions
  • various fasteners
429.74 AUD/Pc.
2 in 3-4 weeks from stock Germany
To the product page

drygear® Apiro | Gearbox with output coupling
drygear® Apiro | Gearbox with output coupling
The standard version among Apiro gearboxes: the worm gear with drive coupling enables a direct connection. The gearbox with an output shaft enables a direct connection to the output and is ideally suited for connection to drylin drive technology.

Product information
  • available transmissions 4:1, 32:1, 64:1
  • Output shaft diameter: 8mm
Optionally available
  • more transmissions
  • various fasteners
296.47 AUD/Pc.
1 in 24-48 hours from stock Germany
3 in 3-4 weeks from stock Germany
To the product page

drygear® Apiro | Connection to dryspin® lead screws
drygear® Apiro | Connection to dryspin® lead screws
A simple and direct connection of the Apiro gearboxes to the dryspin lead screws

Product information
  • available transmissions 4:1, 32:1, 64:1
  • Available options: DS10x25, DS12x5 and TR16x2
Optionally available
  • more transmissions
  • various fasteners
281.57 AUD/Pc.
4 in 3-4 weeks from stock Germany
To the product page

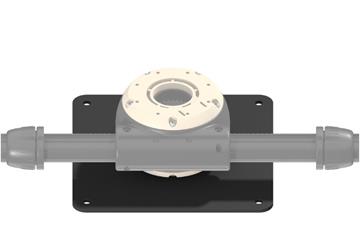

drygear® Apiro assembly option horizontal, plate
drygear® Apiro assembly option horizontal, plate
Zur Befestigung von Apiro Getrieben
55.03 AUD/Pc.
1 in 1-2 weeks from stock Germany
To the product page

drygear® Apiro worm gear for manual adjustment
drygear® Apiro worm gear for manual adjustment
General properties:
  • Apiro worm gear with tribologically optimised material compounds
  • Particularly suitable as drive in format adjustment and synchronisations
  • available ratios: 4:1, 8:1, 32:1, 64:1
  • Large handwheel, position indicator and hand clamp for manual drive
  • output shafts 4mm-12mm possible
  • Easy
  • Lubrication-free
  • Low backlash
615.20 AUD/Pc.
4 in 3-4 weeks from stock Germany
To the product page

drygear® Apiro gearbox with turntable on both sides
drygear® Apiro gearbox with turntable on both sides
General properties:
  • Apiro worm gear with tribologically optimised material compounds
  • Available gear ratios: 4:1, 8:1, 32:1, 64:1
  • Motorised or manual adjustment possible
  • Wide range of accessories available
  • Suitable for splash water
  • Easy
  • Lubrication-free
  • Clearance arm
404.39 AUD/Pc.
2 in 3-4 weeks from stock Germany
To the product page

drygear® Apiro hoist gear
drygear® Apiro hoist gear
General properties:
  • Dry running thanks to tribologically optimised plastics
  • Motorised or manual adjustment possible
  • Other thread pitches available on request
  • Suitable for splash water
  • Light weight
  • Backlash-free
633.41 AUD/Pc.
1 in 3-4 weeks from stock Germany
To the product page
