Cost-effective automation with maintenance-free cartesian and delta robots

What is a linear robot?

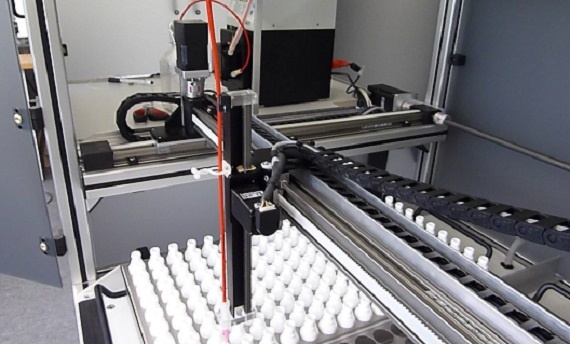

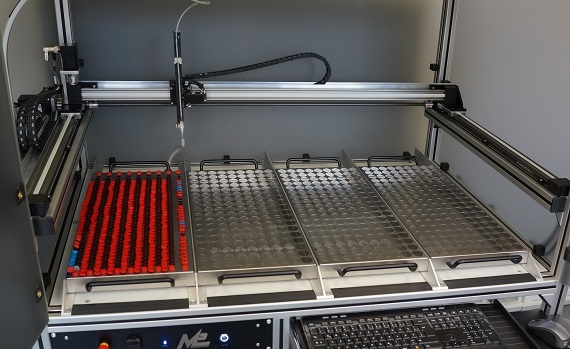

Linear robots are industrial robots, consisting of a combination of several linear axes. They help to implement a multi-dimensional movement and are used for positioning tasks, automation and as measuring stations. Linear robots are available in numerous designs, including line robots, low-profile linear robots and room linear robots.

• Line robots are used in vertical working planes whereby a linear axis mounted on a linear carriage travels on the main axis.

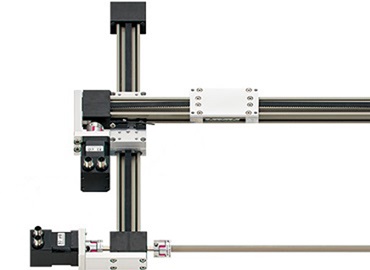

• Low-profile linear robots or surface linear robots are based on a linear axis system that can be moved in the XY direction.

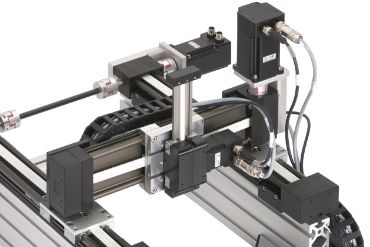

• Room linear robots are typically 3-axis linear robots with XYZ strokes, whereby additional axes are possible.

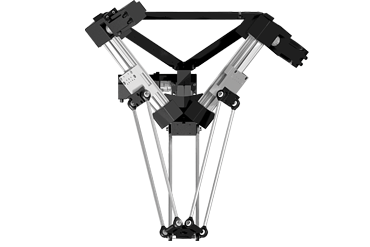

What is a delta robot?

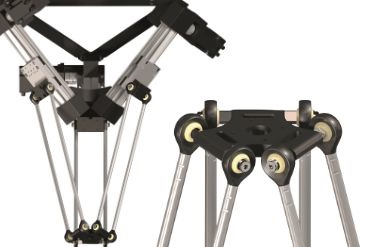

Delta robots are industrial robots with at least three arms, which are either fixed to a base with universal joints or, in the case of drylin delta robots, to toothed belt axes. The flange star connected via spherical bearings with the arm-axes moves in X, Y and Z directions in such a way that it allows high precision. The arms of delta robots are very light, which reduces the inertia and allows high achievable speeds and accelerations.

This type of pick and place robots is often used in factories for packaging and assembly.

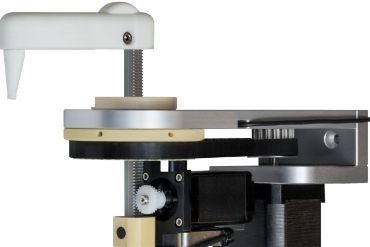

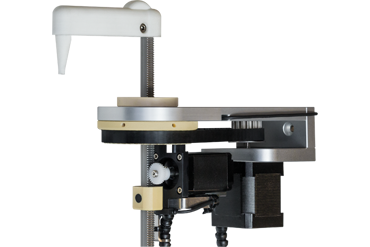

What is a lift/swivel unit?

The lift/rotate unit is a space-saving pick and place robot based on a rack drive with a coated aluminium profile and a slewing ring with integrated toothing for receiving the toothed belt. Powered by a Nema motor, the lift/rotate unit can perform lifting and pivoting movements. The guide rod is at the same time the drive rod, whereby this handling device can move into very small installation spaces.
Due to the compact design, the lift/rotate unit offers versatile and flexible application possibilities in the handling of small parts.

Frequent fields of application:

• Pipetting technology
• Laboratory technology
• Analysing technology
• Medical technology

As the drylin lift/swivel unit is a modular handling device, its individual parts can be ordered individually or adapted to individual requirements. As a workpiece holder, any form of gripper can be integrated.
